TemporAI¶

Important

Status: This project is still in alpha, and the API may change without warning.

📃 Overview¶

TemporAI is a Machine Learning-centric time-series library for medicine. The tasks that are currently of focus in TemporAI are: time-to-event (survival) analysis with time-series data, treatment effects (causal inference) over time, and time-series prediction. Data preprocessing methods, including missing value imputation for static and temporal covariates, are provided. AutoML tools for hyperparameter tuning and pipeline selection are also available.

How is TemporAI unique?¶

🏥 Medicine-first: Focused on use cases for medicine and healthcare, such as temporal treatment effects, survival analysis over time, imputation methods, models with built-in and post-hoc interpretability, … See methods.
🏗️ Fast prototyping: A plugin design allowing for on-the-fly integration of new methods by the users.
🚀 From research to practice: Relevant novel models from research community adapted for practical use.
🌍 A healthcare ecosystem vision: A range of interactive demonstration apps, new medical problem settings, interpretability tools, data-centric tools etc. are planned.

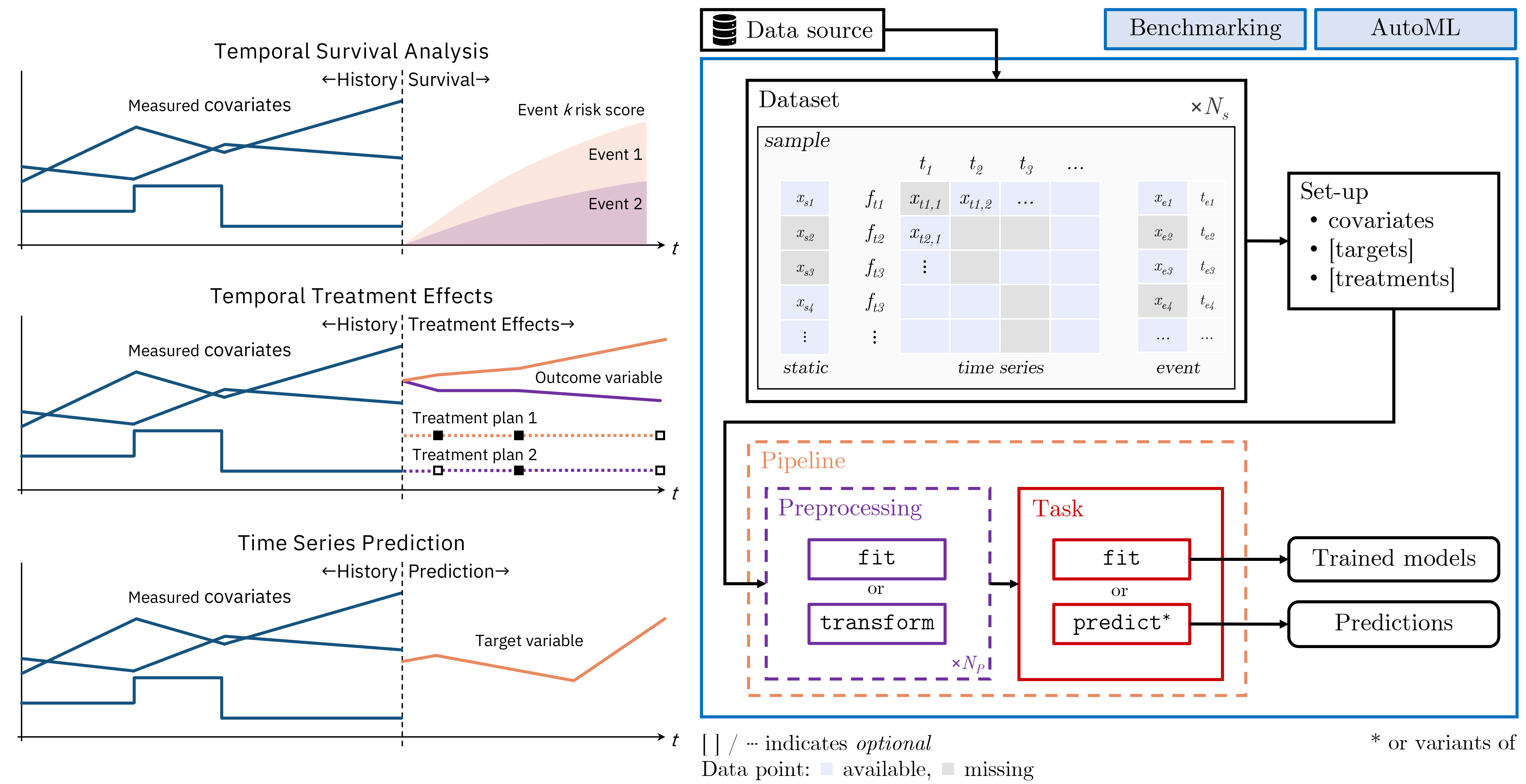

Key concepts¶

🚀 Installation¶

Instal with `pip`¶

From the Python Package Index (PyPI):

$ pip install temporai

Or from source:

$ git clone https://github.com/vanderschaarlab/temporai.git
$ cd temporai
$ pip install .

Install in a conda environment¶

While have not yet published TemporAI on conda-forge, you can still install TemporAI in your conda environment using pip as follows:

Create and activate conda environment as normal:

$ conda create -n <my_environment>
$ conda activate <my_environment>

Then install inside your conda environment with pip:

$ pip install temporai

💥 Sample Usage¶

List the available plugins

from tempor import plugin_loader

print(plugin_loader.list())

Use a time-to-event (survival) analysis model

from tempor import plugin_loader

# Load a time-to-event dataset:
dataset = plugin_loader.get("time_to_event.pbc", plugin_type="datasource").load()

# Initialize the model:
model = plugin_loader.get("time_to_event.dynamic_deephit")

# Train:
model.fit(dataset)

# Make risk predictions:
prediction = model.predict(dataset, horizons=[0.25, 0.50, 0.75])

Use a temporal treatment effects model

import numpy as np

from tempor import plugin_loader

# Load a dataset with temporal treatments and outcomes:
dataset = plugin_loader.get(
    "treatments.temporal.dummy_treatments",
    plugin_type="datasource",
    temporal_covariates_missing_prob=0.0,
    temporal_treatments_n_features=1,
    temporal_treatments_n_categories=2,
).load()

# Initialize the model:
model = plugin_loader.get("treatments.temporal.regression.crn_regressor", epochs=20)

# Train:
model.fit(dataset)

# Define target variable horizons for each sample:
horizons = [
    tc.time_indexes()[0][len(tc.time_indexes()[0]) // 2 :] for tc in dataset.time_series
]

# Define treatment scenarios for each sample:
treatment_scenarios = [
    [np.asarray([1] * len(h)), np.asarray([0] * len(h))] for h in horizons
]

# Predict counterfactuals:
counterfactuals = model.predict_counterfactuals(
    dataset,
    horizons=horizons,
    treatment_scenarios=treatment_scenarios,
)

Use a missing data imputer

from tempor import plugin_loader

dataset = plugin_loader.get(
    "prediction.one_off.sine", plugin_type="datasource", with_missing=True
).load()
static_data_n_missing = dataset.static.dataframe().isna().sum().sum()
temporal_data_n_missing = dataset.time_series.dataframe().isna().sum().sum()

print(static_data_n_missing, temporal_data_n_missing)
assert static_data_n_missing > 0
assert temporal_data_n_missing > 0

# Initialize the model:
model = plugin_loader.get("preprocessing.imputation.temporal.bfill")

# Train:
model.fit(dataset)

# Impute:
imputed = model.transform(dataset)
temporal_data_n_missing = imputed.time_series.dataframe().isna().sum().sum()

print(static_data_n_missing, temporal_data_n_missing)
assert temporal_data_n_missing == 0

Use a one-off classifier (prediction)

from tempor import plugin_loader

dataset = plugin_loader.get("prediction.one_off.sine", plugin_type="datasource").load()

# Initialize the model:
model = plugin_loader.get("prediction.one_off.classification.nn_classifier", n_iter=50)

# Train:
model.fit(dataset)

# Predict:
prediction = model.predict(dataset)

Use a temporal regressor (forecasting)

from tempor import plugin_loader

# Load a dataset with temporal targets.
dataset = plugin_loader.get(
    "prediction.temporal.dummy_prediction",
    plugin_type="datasource",
    temporal_covariates_missing_prob=0.0,
).load()

# Initialize the model:
model = plugin_loader.get("prediction.temporal.regression.seq2seq_regressor", epochs=10)

# Train:
model.fit(dataset)

# Predict:
prediction = model.predict(dataset, n_future_steps=5)

Benchmark models, time-to-event task

from tempor.benchmarks import benchmark_models
from tempor import plugin_loader
from tempor.methods.pipeline import pipeline

testcases = [
    (
        "pipeline1",
        pipeline(
            [
                "preprocessing.scaling.temporal.ts_minmax_scaler",
                "time_to_event.dynamic_deephit",
            ]
        )({"ts_coxph": {"n_iter": 100}}),
    ),
    (
        "plugin1",
        plugin_loader.get("time_to_event.dynamic_deephit", n_iter=100),
    ),
    (
        "plugin2",
        plugin_loader.get("time_to_event.ts_coxph", n_iter=100),
    ),
]
dataset = plugin_loader.get("time_to_event.pbc", plugin_type="datasource").load()

aggr_score, per_test_score = benchmark_models(
    task_type="time_to_event",
    tests=testcases,
    data=dataset,
    n_splits=2,
    random_state=0,
    horizons=[2.0, 4.0, 6.0],
)

print(aggr_score)

Serialization

from tempor.utils.serialization import load, save
from tempor import plugin_loader

# Initialize the model:
model = plugin_loader.get("prediction.one_off.classification.nn_classifier", n_iter=50)

buff = save(model)  # Save model to bytes.
reloaded = load(buff)  # Reload model.

# `save_to_file`, `load_from_file` also available in the serialization module.

AutoML - search for the best pipeline for your task

from tempor.automl.seeker import PipelineSeeker

dataset = plugin_loader.get("prediction.one_off.sine", plugin_type="datasource").load()

# Specify the AutoML pipeline seeker for the task of your choice, providing candidate methods,
# metric, preprocessing steps etc.
seeker = PipelineSeeker(
    study_name="my_automl_study",
    task_type="prediction.one_off.classification",
    estimator_names=[
        "cde_classifier",
        "ode_classifier",
        "nn_classifier",
    ],
    metric="aucroc",
    dataset=dataset,
    return_top_k=3,
    num_iter=100,
    tuner_type="bayesian",
    static_imputers=["static_tabular_imputer"],
    static_scalers=[],
    temporal_imputers=["ffill", "bfill"],
    temporal_scalers=["ts_minmax_scaler"],
)

# The search will return the best pipelines.
best_pipelines, best_scores = seeker.search()  # doctest: +SKIP

📖 Tutorials¶

Data¶

User Guide¶

Extending TemporAI¶

🌍 TemporAI Ecosystem (Experimental)¶

We provide additional tools in the TemporAI ecosystem, which are in active development, and are currently (very) experimental. Suggestions and contributions are welcome!

These include:

temporai-clinic: A web app tool for interacting and visualising TemporAI models, data, and predictions.
temporai-mivdp: A MIMIC-IV-Data-Pipeline adaptation for TemporAI.

🔑 Methods¶

Time-to-Event (survival) analysis over time¶

Risk estimation given event data (category: time_to_event)

Name	Description	Reference
`dynamic_deephit`	Dynamic-DeepHit incorporates the available longitudinal data comprising various repeated measurements (rather than only the last available measurements) in order to issue dynamically updated survival predictions	Paper
`ts_coxph`	Create embeddings from the time series and use a CoxPH model for predicting the survival function	—
`ts_xgb`	Create embeddings from the time series and use a SurvivalXGBoost model for predicting the survival function	—

Treatment effects¶

One-off¶

Treatment effects estimation where treatments are a one-off event.

Regression on the outcomes (category: treatments.one_off.regression)

Name	Description	Reference
`synctwin_regressor`	SyncTwin is a treatment effect estimation method tailored for observational studies with longitudinal data, applied to the LIP setting: Longitudinal, Irregular and Point treatment.	Paper

Temporal¶

Treatment effects estimation where treatments are temporal (time series).

Classification on the outcomes (category: treatments.temporal.classification)

Name	Description	Reference
`crn_classifier`	The Counterfactual Recurrent Network (CRN), a sequence-to-sequence model that leverages the available patient observational data to estimate treatment effects over time.	Paper

Regression on the outcomes (category: treatments.temporal.regression)

Name	Description	Reference
`crn_regressor`	The Counterfactual Recurrent Network (CRN), a sequence-to-sequence model that leverages the available patient observational data to estimate treatment effects over time.	Paper

Prediction¶

One-off¶

Prediction where targets are static.

Classification (category: prediction.one_off.classification)

Name	Description	Reference
`nn_classifier`	Neural-net based classifier. Supports multiple recurrent models, like RNN, LSTM, Transformer etc.	—
`ode_classifier`	Classifier based on ordinary differential equation (ODE) solvers.	—
`cde_classifier`	Classifier based Neural Controlled Differential Equations for Irregular Time Series.	Paper
`laplace_ode_classifier`	Classifier based Inverse Laplace Transform (ILT) algorithms implemented in PyTorch.	Paper

Regression (category: prediction.one_off.regression)

Name	Description	Reference
`nn_regressor`	Neural-net based regressor. Supports multiple recurrent models, like RNN, LSTM, Transformer etc.	—
`ode_regressor`	Regressor based on ordinary differential equation (ODE) solvers.	—
`cde_regressor`	Regressor based Neural Controlled Differential Equations for Irregular Time Series.	Paper
`laplace_ode_regressor`	Regressor based Inverse Laplace Transform (ILT) algorithms implemented in PyTorch.	Paper

Temporal¶

Prediction where targets are temporal (time series).

Classification (category: prediction.temporal.classification)

Name	Description	Reference
`seq2seq_classifier`	Seq2Seq prediction, classification	—

Regression (category: prediction.temporal.regression)

Name	Description	Reference
`seq2seq_regressor`	Seq2Seq prediction, regression	—

Preprocessing¶

Feature Encoding¶

Static data (category: preprocessing.encoding.static)

Name	Description	Reference
`static_onehot_encoder`	One-hot encode categorical static features	—

Temporal data (category: preprocessing.encoding.temporal)

Name	Description	Reference
`ts_onehot_encoder`	One-hot encode categorical time series features	—

Imputation¶

Static data (category: preprocessing.imputation.static)

Name	Description	Reference
`static_tabular_imputer`	Use any method from HyperImpute (HyperImpute, Mean, Median, Most-frequent, MissForest, ICE, MICE, SoftImpute, EM, Sinkhorn, GAIN, MIRACLE, MIWAE) to impute the static data	Paper

Temporal data (category: preprocessing.imputation.temporal)

Name	Description	Reference
`ffill`	Propagate last valid observation forward to next valid	—
`bfill`	Use next valid observation to fill gap	—
`ts_tabular_imputer`	Use any method from HyperImpute (HyperImpute, Mean, Median, Most-frequent, MissForest, ICE, MICE, SoftImpute, EM, Sinkhorn, GAIN, MIRACLE, MIWAE) to impute the time series data	Paper

Scaling¶

Static data (category: preprocessing.scaling.static)

Name	Description	Reference
`static_standard_scaler`	Scale the static features using a StandardScaler	—
`static_minmax_scaler`	Scale the static features using a MinMaxScaler	—

Temporal data (category: preprocessing.scaling.temporal)

Name	Description	Reference
`ts_standard_scaler`	Scale the temporal features using a StandardScaler	—
`ts_minmax_scaler`	Scale the temporal features using a MinMaxScaler	—

🔨 Tests and Development¶

Install the testing dependencies using:

pip install .[testing]

The tests can be executed using:

pytest -vsx

For local development, we recommend that you should install the [dev] extra, which includes [testing] and some additional dependencies:

pip install .[dev]

For development and contribution to TemporAI, see:

✍️ Citing¶

If you use this code, please cite the associated paper:

@article{saveliev2023temporai,
  title={TemporAI: Facilitating Machine Learning Innovation in Time Domain Tasks for Medicine},
  author={Saveliev, Evgeny S and van der Schaar, Mihaela},
  journal={arXiv preprint arXiv:2301.12260},
  year={2023}
}
